Description

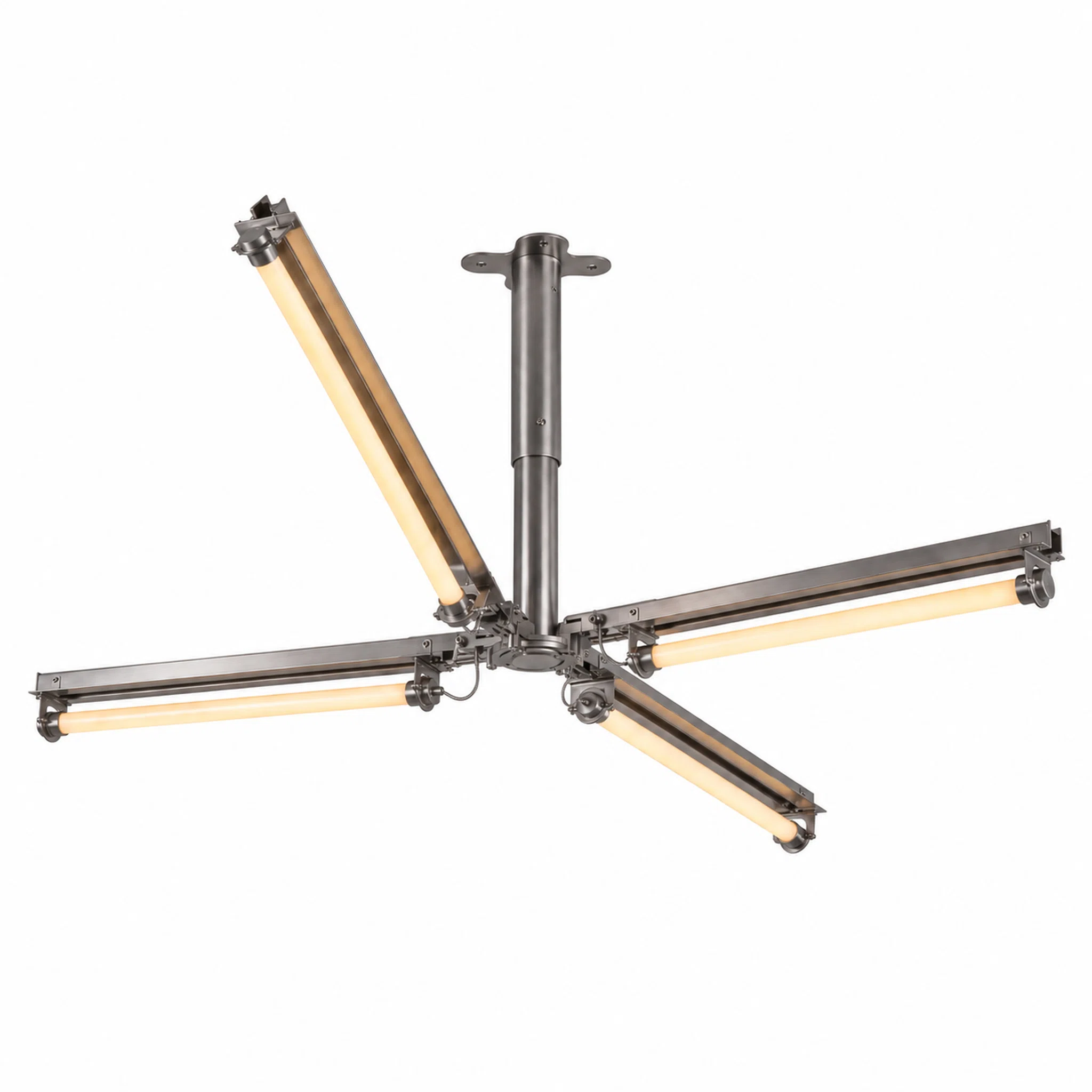

An adjustable four-arm pendant that opens from a compact industrial core into a graphic illuminated cross.
The supplied product images show its form, finish, construction details and intended application. Confirm the selected finish and local electrical compatibility before ordering.
Design Story

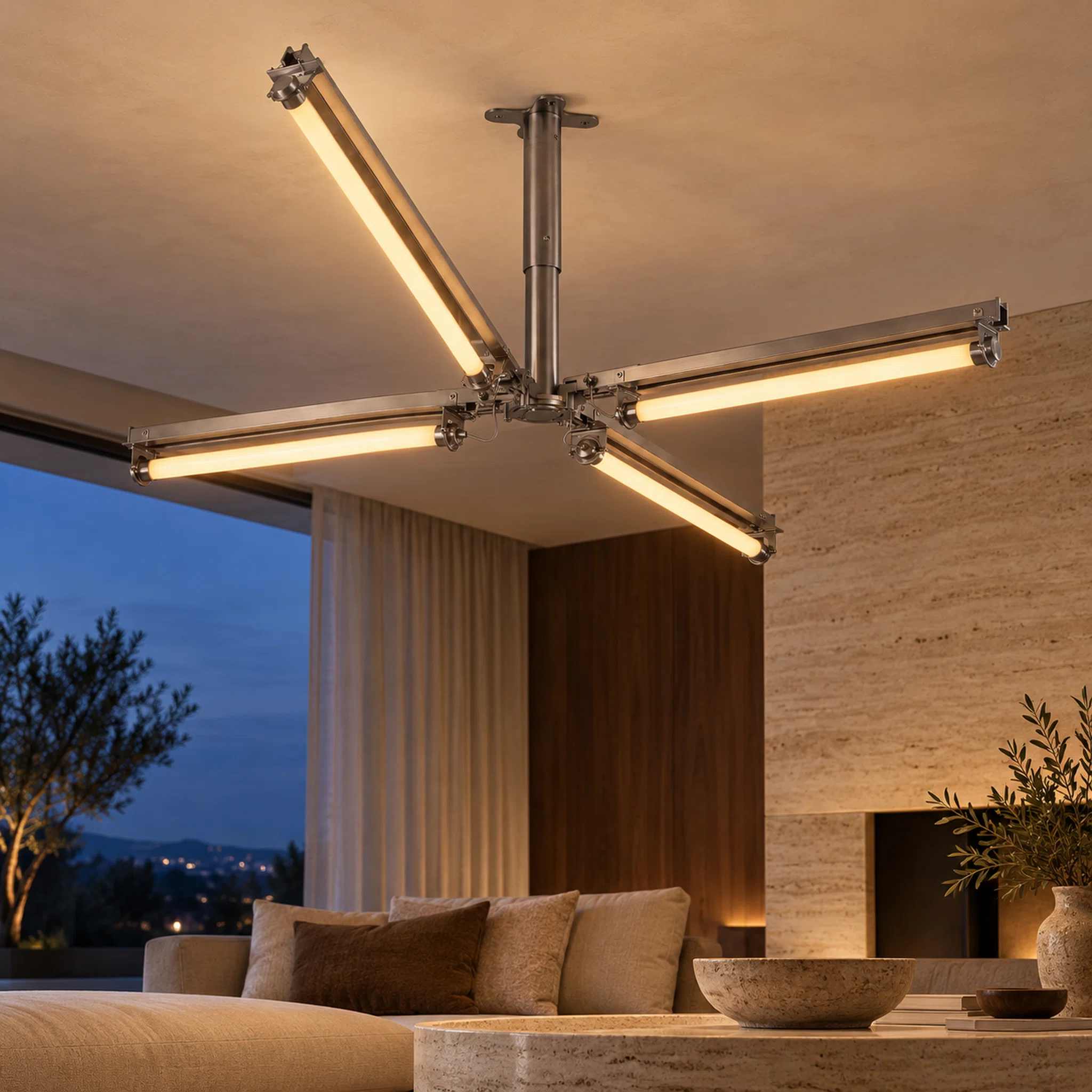

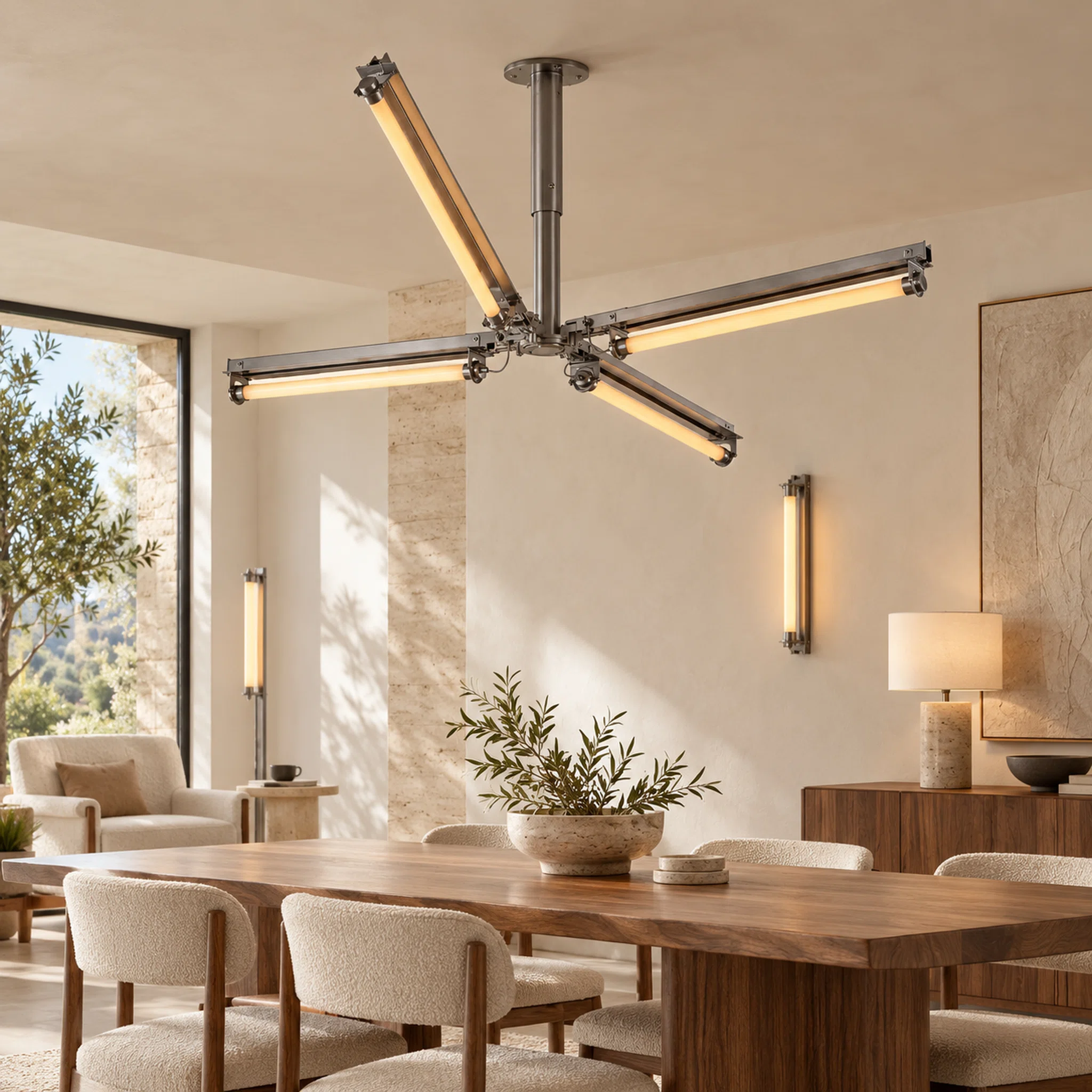

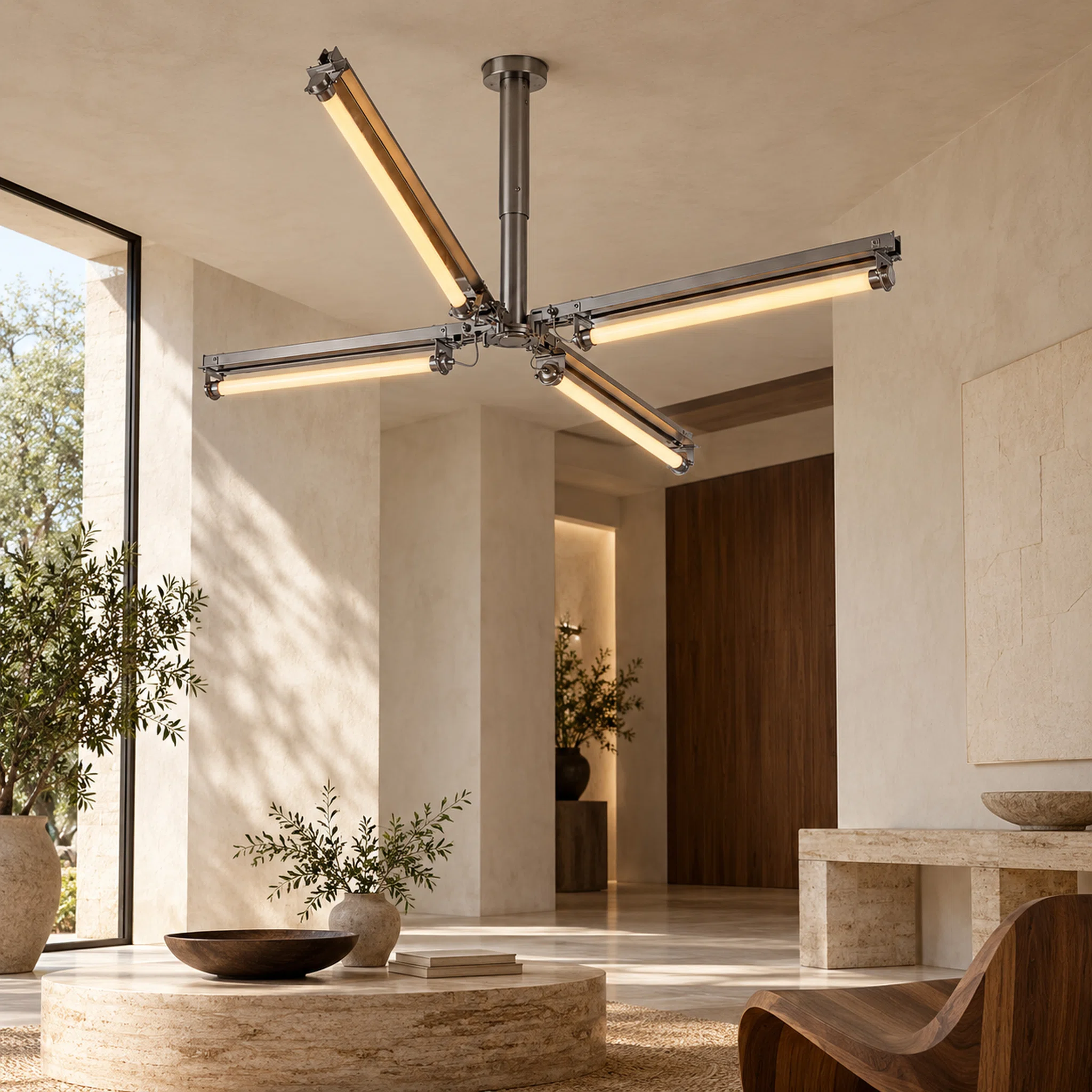

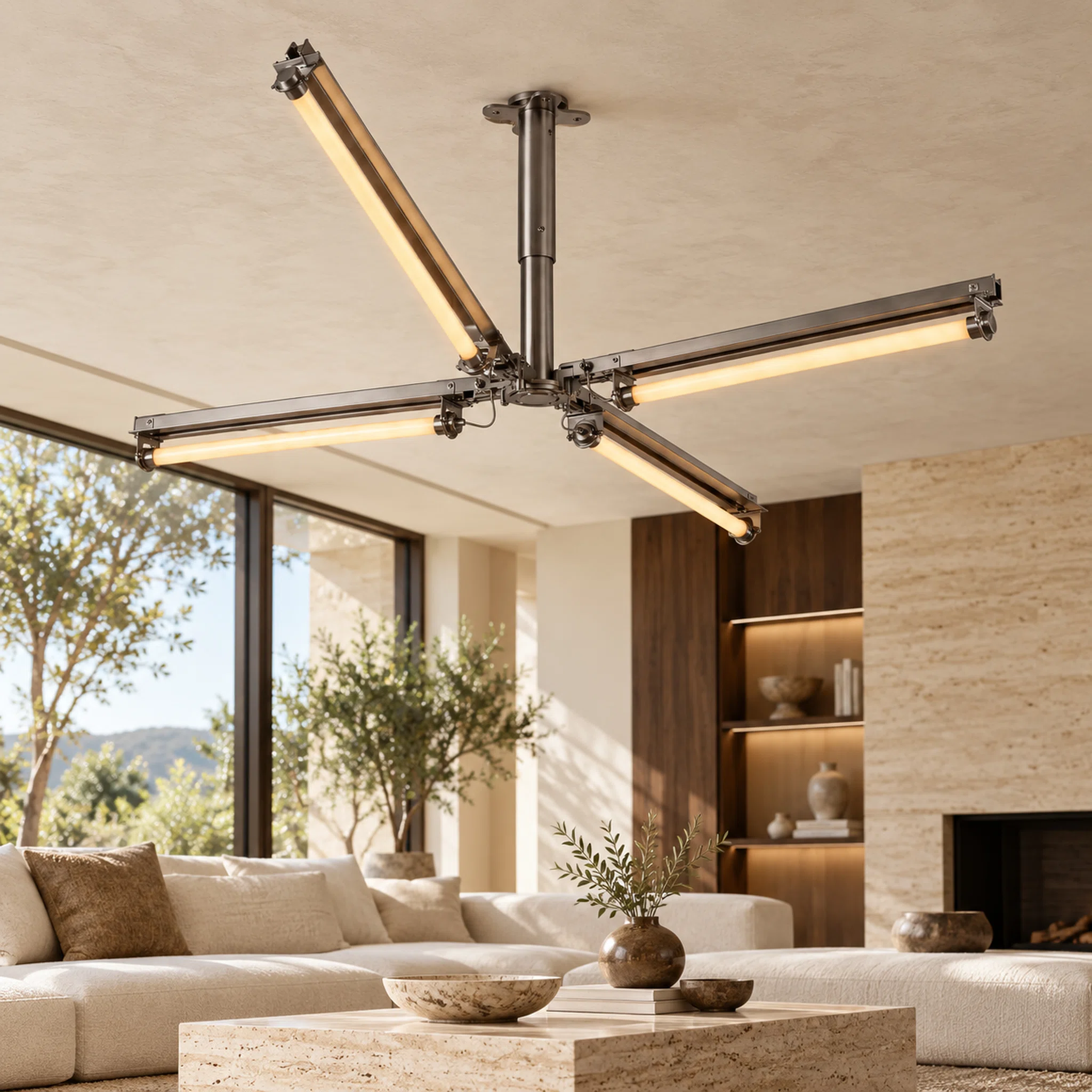

The exposed joints allow the four illuminated arms to move as a single mechanical composition. Opened fully, the lamp reads as a broad cross; set at different angles, it becomes a more compact asymmetric ceiling sculpture.
Product Highlights
- Four adjustable illuminated arms create multiple ceiling silhouettes.

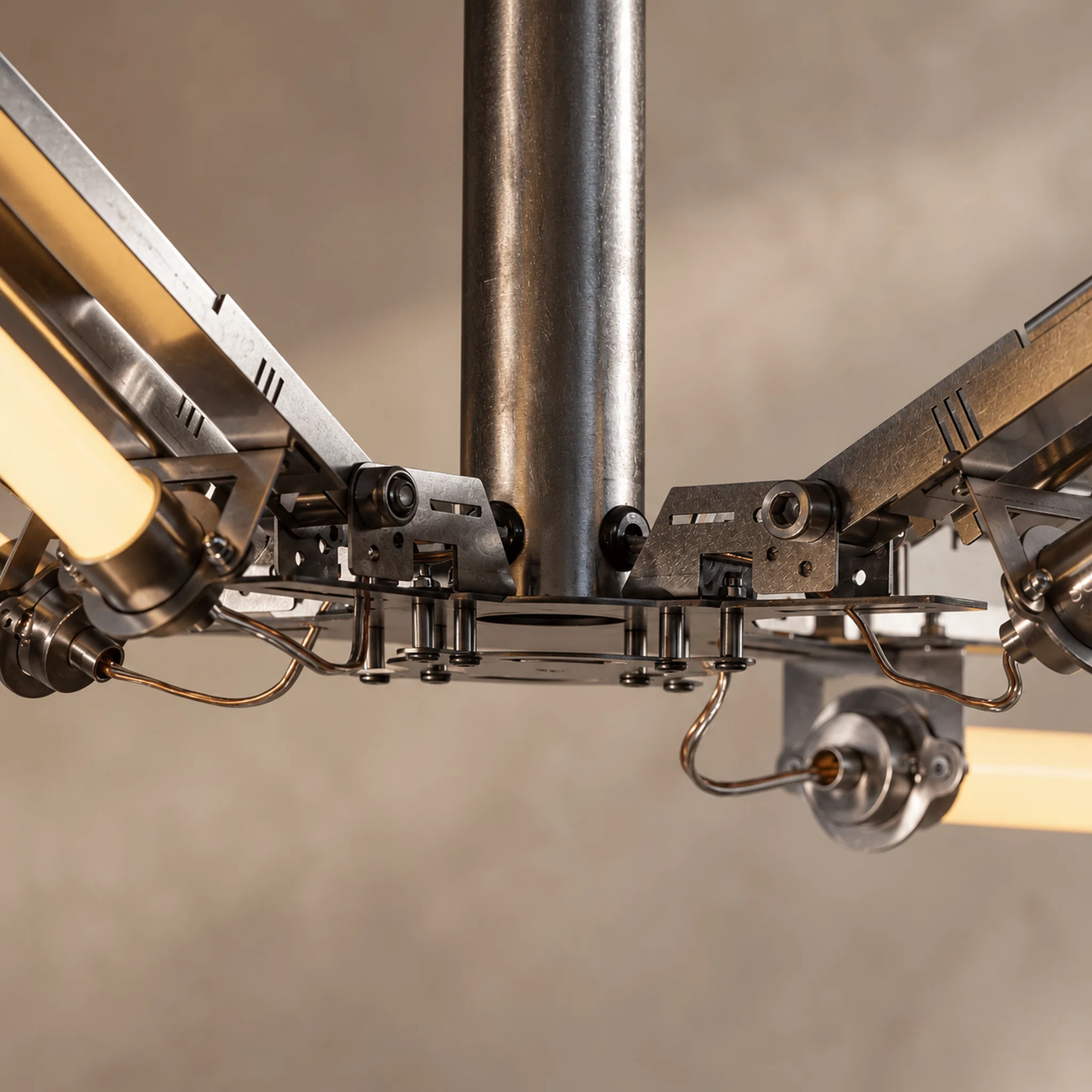

- The exposed stainless-steel joints make the mechanical structure part of the design.
Specification
| Collection | 12SQUARE Designer Lighting |
| Fixture type | Pendant Light |
| Material | 304 stainless steel, 360-degree LED tubes |
| Dimensions | Body H 670 x L 260 x W 260 mm; unfolded span approx. 1140 mm |
| Net weight | Approx. 4.1 kg / 9.0 lb |
| Light source | 24V; 7W x 4 = 28W; 3000K; 110-240V input |
| Packing size | H 700 x L 300 x W 300 mm |
| Gross weight | Approx. 5 kg / 11.0 lb |
| Application | Indoor |
| Adjustment | Four light arms can be set to different angles; vertical movement approx. 68 degrees |
Installation and Dimming
Hardwire to a structurally suitable ceiling point. Installation must be completed by a qualified electrician. Dimming was not specified in the supplied product images. Confirm the required driver and control method before order.
Hand-Finished Materials
Hand-formed and welded metal may show subtle polishing variation, bend marks, weld points or heat ripples. These are normal characteristics of the making process, and reflective finishes may appear different under changing light.
Care
Switch off and allow the light to cool before cleaning. Dust with a soft, dry microfibre cloth. Avoid acid, alkaline and abrasive cleaners on metal surfaces; wipe any moisture away immediately.
Lead Time and After-Sales
Availability and production lead time are confirmed with the order. Report shipping damage promptly and keep the original packaging. Warranty coverage is confirmed in the written quotation.
Pricing
The numeric price is shown in USD exactly as provided in the supplied product listing image; no currency conversion has been applied. Freight, tax, installation and project customisation are quoted separately.
